Construction Hoist

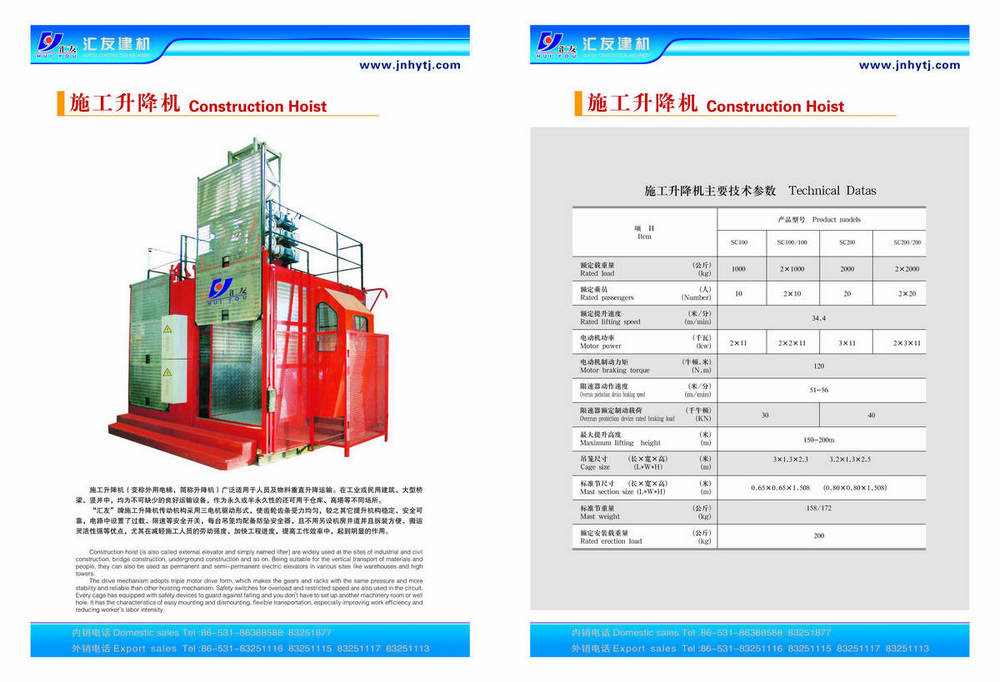

Item	Sc100	Sc100/100	Sc200	Sc200/200
Rated load(kg)	1000	2*1000	2000	2*2000
Rated passengers(number)	10	2*10	20	2*20
Motor power(kw)	2*11	2*2*11	3*11	2*3*11
Overrun protection device rated braking oad(KN)	30		40
Overrun protection device braking speed(m/min)	51-56
Rated lifting speed(m/min)	34.4
Motor braking torque(N.m)	120
Maximum lifting height(m)	150-200
Cage size(L*W*H)	3*1.3*2.3                  3.2*1.3*2.5
Mast section size(L*W*H)	0.65*0.65*1.508
Mast weight(kg)	158/172
Rated erection load(kg)	200

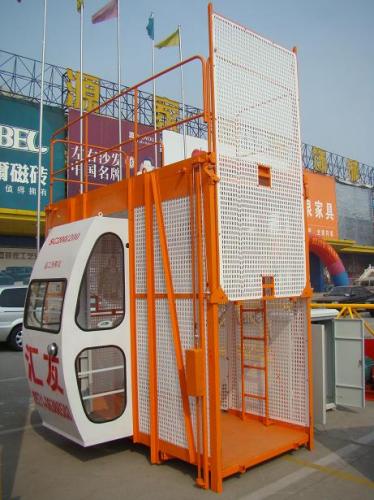

Construction hoist (elevators external variable and simply named lifter) is widely used in vertical lift transport personnel and materials.
"Huiyou" brand building hoist motor drive mechanism using three forms of the rack and pinion Force uniform, compared to other lifting mechanism, stability and security, set up the circuit overload, speed limits and other safety switches, each cage were safety device is equipped with anti-dropping, and not a separate room wells and easy to dismantle and transport flexibility and other advantages, particularly in the construction workers to reduce labor intensity, acceleration, improve efficiency played a significant role.

Please contact us for more details.
